Technical Specifications: BIOCRUX-G

Details Machine Features :

DIMENSIONS:

  • Overall Height: 1690 MM
  • Overall Width: 700 MM
  • Overall Depth: 1000 MM

Weight:

380 KG

Capacity:

400-500 bottles per hour

Body:

MS Steel

WHEEL:

Capacity of 400 KG

Indicator:

To indicate machine is running

Size / Quality of Bottles:

Upto 2000ML bottle of PET/Plastics only

WINDOW in bottom:

300MM X 300MM


Features Inside (mechanics) :

Motor :

3HP (2.2 KVA) – Crompton/Havells

Connection :

Single PHASE ( 230 V) / 3 PHASE (440 V)

Blade :

D2/ Special alloy – 3 rotary & 2 fixed

Black Box :

With. Nickel / Chrome plating

Hopper :

Specially designed hopper – to absorb upto 2000ml bottle standing

Starter :

L & T Single Phase Smart Starter / L & T 3 phase starter


Limit Switch / Safety Switch :

Limit Switch ensure auto starts of machine. All doors are attached with safety switch to prevent any accident.

Wall :

Insulated inside to absorb noise of machine

FLAP + Limit switch :

Regulate machine: Start/stop - Micro Hybrid

Filter :

To manage the size of flakes


Storage Bin :

Capacity :

15Kg flakes or 1000 Bottles of different sizes

Dimension :

640 L X 380 H X 300 W

Body :

MS and Acrylic window. Roller in bottom for free movement

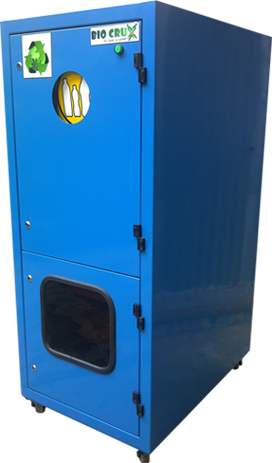

BIOCRUX - G :

BIOCRUX - G is an automatic Noiseless pet / plastic bottle flaking machine. The machine is made with micro hybrid concept, it start and stop automatically based on the bottle feeding. The mouth of the machine is attached with a flap which controls the movement of the machine. After flaking machine will stop automatically and remain shut till another bottle fed in the machine. Each fed will reset the machine for next cycle as per time fixed in timer.
