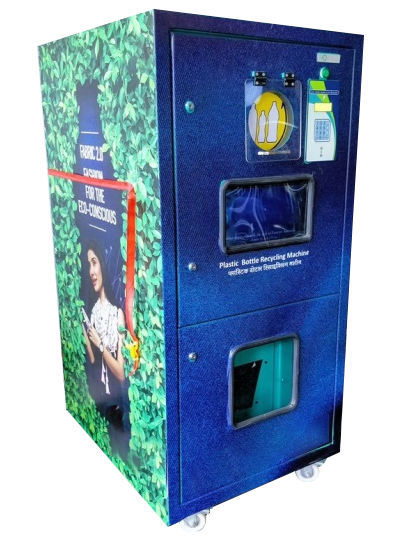

Technical Specifications : Biocrux RVMD-F20

Reverse Vending Machine-Digital Features (outer):

DIMENSIONS:

• Overall Height: 1690 MM
• Overall Width: 700 MM
• Overall Depth: 1000 MM

Weight:

380 KG

Capacity:

400-500 bottles per hours

BODY:

MS Steel

Wheel:

Capacity of 400 KG

Indicator:

To indicate machine is running

Size / Quality of Bottles:

Upto 2000ML bottle of PET/Plastics only

WINDOW in bottom:

300 MM X 300MM

Features Inside (mechanics):

Motor:

3HP (2.2 KVA) – Crompton/Havells

Connection:

Single PHASE ( 230 V) / 3 PHASE (440 V)

Blade:

D2/ Special alloy – 3 rotary & 2 fixed

Black Box:

With. Nickel / Chrome plating

Hopper:

Specially designed hopper – to absorb upto 2000ml bottle standing

Starter:

L & T Single Phase Smart Starter / L & T 3 phase starter

Limit Switch / Safety Switch:

Limit Switch ensure auto starts of machine. All doors are attached with safety switch to prevent any accident.

Wall:

Insulated inside to absorb noise of machine

FLAP + Limit switch:

Regulate machine: Start/stop - Micro Hybrid

Filter:

To manage the size of flakes

Storage Bin :

Capacity :

10Kg flakes or 500 Bottles of different sizes

Dimension :

640 L X 380 H X 300 W

Wheel :

MS and Acrylic window. Roller in bottom for free movement.
